Detailed discussion on the functions and effects of mobile boarding bridges

Mobile boarding bridges are essential equipment for cargo handling and logistics in large enterprises, logistics companies, warehouses, yards, and other areas. With it, forklifts can directly enter containers or carriages, greatly improving the loading and unloading efficiency of goods. Careful users may find that most mobile boarding bridge decks are first laid with a layer of high-strength patterned steel plates, followed by a layer of high-strength anti slip steel grating plates on top of the patterned steel plates. So, why is it necessary to lay a layer of high-strength anti slip steel grating on the surface of high-strength anti slip patterned steel plates?

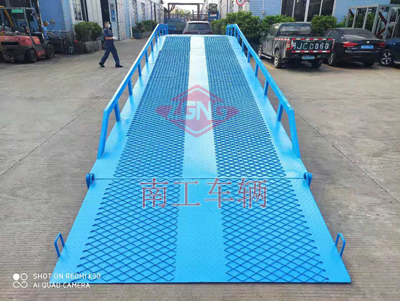

Generally speaking, laying high-strength anti slip patterned steel plates can make the overall connection of the mobile boarding bridge more secure. Under normal weather conditions, the friction generated by high-strength anti slip patterned steel plates can meet the loading and unloading needs of forklifts. But if in rainy and snowy weather, especially in winter, the gaps between the anti slip patterns of the patterned steel plate freeze, it will be difficult for the forklift to load and unload goods normally on the mobile boarding bridge. Upon careful observation, it can be observed that there is no patterned steel plate in the middle of the table top of the mobile boarding bridge, with a width of 50-80cm. It is specially designed for drainage and facilitates the rapid flow of rainwater from the table top. The use of high-strength anti slip steel grille greatly increases the friction between the forklift and the desktop, allowing it to operate normally even in rainy and snowy weather.

Mobile boarding bridge is an auxiliary equipment used in conjunction with forklifts or hand carts to load goods in truck containers or warehouses, with a large loading capacity and convenient operation.

The structural composition of the mobile boarding bridge:

1. Flip board (also known as tailboard), used for forklift up and down conversion, with large load-bearing capacity and beautiful design;

2. Slope surface, which is a ramp used by forklifts to travel on mobile boarding bridges, is made of welded steel plates with high density, which have the function of improving friction and anti slip, and are not easy to scratch the tire surface of forklifts.

3. The connection between the mobile boarding bridge and the truck is more closed, equipped with galvanized chains, hanging on the truck carriage for enhancing quality and reliable use, overlapping with the rear of the truck.

4. The oil barrel and two cylinders both use high-quality seals: good wear resistance, long service life, chrome plated high-strength piston rod, not easy to deform;

5. A simple hand operated hydraulic system, equipped with a hand operated power system and appropriate control levers, makes the operation simple and comfortable, without the need for external power cables, making it suitable for convenient outdoor work.

6. Solid core tires, wear resistant, and long service life.

7. Brake pad, equipped with brake pads, placed behind the tires to prevent the forklift from moving forward and backward on the movable boarding bridge during operation, ensuring safe operation.

8. Customized support legs, in addition to the standard configuration mentioned above, can also be customized with hydraulic hand legs to firmly fix them on the ground, thereby improving work efficiency.

9. Customized anti-collision pads are installed under the board near the rear of the truck, so that the truck driver cannot see the rear when reversing, thus preventing collision with equipment or damage to the truck.

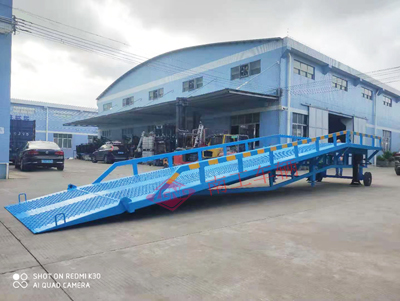

The detailed parameters of the Nangong 10 ton mobile boarding bridge are as follows:

Brand: Nangong, model: NGRAT10M-100/21-2S, material: profile steel, load capacity: 10 tons, net weight: 2 tons, bridge deck size: 10 * 2.1 meters, color: blue;

Detailed technical parameters of 10T mobile boarding bridge:

1. The main beam is made of high-strength 16 # steel;

2. The front axle adopts an integrated design;

3. The surface of the bridge deck is paved with 4mm patterned plates and diamond shaped anti-skid nets to prevent slipping during operation;

4. The axle design has a compact and firm structure to prevent deformation of the axle after dynamic loading;

5. The tires are made of two 500-8 solid tires, which are safe, wear-resistant, and maintenance free;

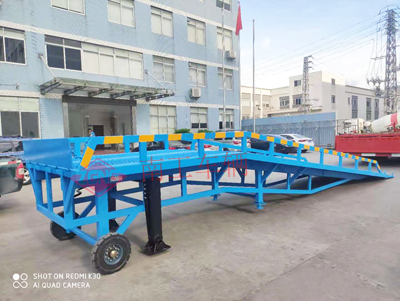

6. Install a set of dedicated support legs for container trucks on the axle, with a single bearing capacity of 28T and a working range of 1.2M-1.65M;

The Nangong 10T mobile boarding bridge is 10 * 2.1 meters long, produced and sold in large quantities by Nangong. It has a large cargo capacity and is safe. It can be customized according to customer requirements at an affordable price.

Application: A special tool used to assist forklifts in loading and unloading goods. Forklifts can be lifted directly from the ground to the interior of the carriage through the boarding bridge for operation, which is safe and durable.
