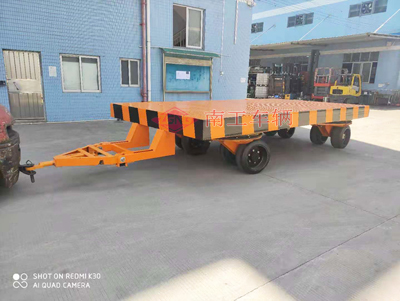

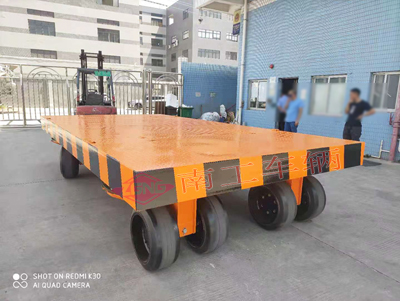

Brand: Nangong, model: NGTT20S-26/50-8S, load capacity: 20 tons, board size: 5 * 2.6 meters, net weight: 4500KG, color: orange;

Detailed parameters of a 20 ton unpowered heavy flat trailer:

1. The designed load-bearing capacity of a single section of the flatbed truck is 20 tons. The main frame of the platform is made of 25 # steel, and the auxiliary beam is made of 14 # steel. The width is 2.6 meters, the length is 5 meters, and the height is about 0.9 meters;

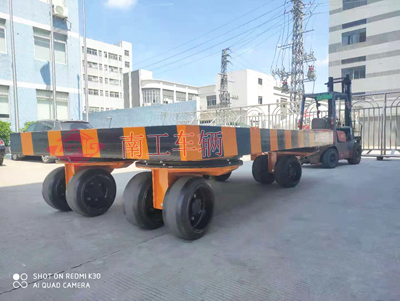

2. This car has a total of 8 maintenance free tires, models 22-10-16 compression fit solid tires, with a single wheel capacity of 4T and a driving speed of 15km/h;

3. The axle adopts a swinging steel suspension, and the axle can adjust the tire force point according to the smoothness of the road surface to ensure that the corresponding tire force is balanced;

4. The steering mechanism consists of four independent rotating assemblies with a single load of approximately (10T) and a rotation angle of 360 degrees, facilitating small radius turning;

5. Each set of rotary mechanism can be independently limited, and the operation is simple. Only the limit pin needs to be pulled out or inserted. If a single flatbed truck is needed, just fix the two rear wheel limit positions;

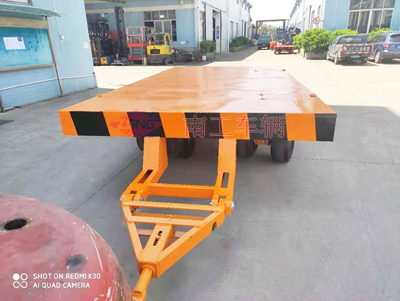

6. In terms of traction, it is equipped with a double spring buffered traction frame to effectively alleviate the impact force between the tractor and the flatbed during starting or braking, avoiding component damage and cargo damage;

7. Color: Orange, surrounded by black and yellow warning stripes.

The 20 ton unpowered traction heavy-duty flat trailer produced by Nangong Vehicles has been customized for a long time, with a designed service life, affordable prices, and fast delivery.

Application: Heavy trailers are commonly used for the transfer and transportation of heavy products such as metallurgy, molds, and machinery. They generally use press fit solid tires with high load and maintenance free.
