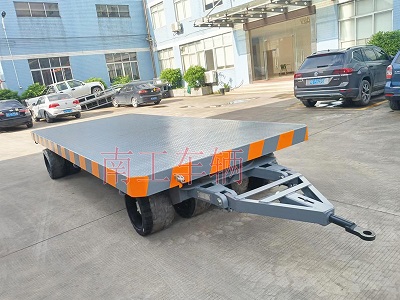

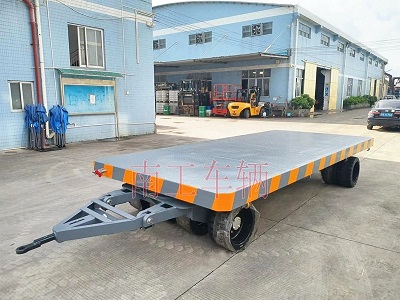

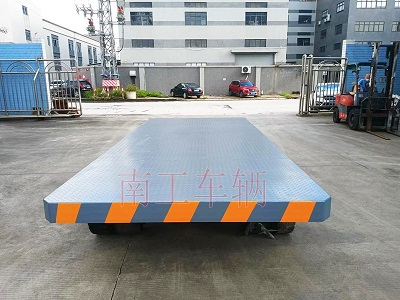

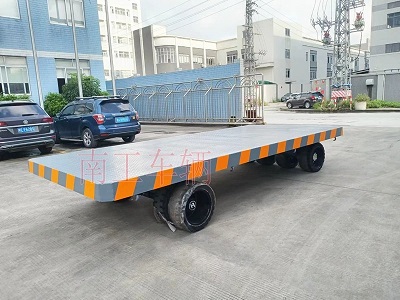

Brand: Nangong, model: NTPT25-8S, load capacity: 25 tons, board size: 5 * 2.2 meters, color: gray, net weight: 3170KG;

Detailed parameters of 25 ton heavy-duty traction flat trailer:

1. The rated load is 25 tons, the effective cargo carrying area (length * width) is 5000 mm * 2200mm, and the vehicle body is approximately 800mm above the ground;

2. The number of tires is 8, and the model is 22 * 10 * 16 solid compression tires, with a single wheel bearing capacity of 4.3T;

3. The main beam is a 25 # steel structure, and the side beam is a 16 # national standard steel structure;

4. 4mm patterned anti-skid plate on the surface (requiring reinforcement treatment);

5. The rotary mechanism is a 25T standard type machine;

6. Double spring buffered traction mechanism, with adjustable and fixed traction frame up and down (different models only require simple adjustment), which is different from traditional double spring buffered traction mechanism

Compared to traction mechanisms, this type of traction mechanism has a more balanced spring force and a longer lifespan;

7. Suspended frame, automatic axle swing adjustment type (convex and concave ground ensures the level of the board surface and balanced tire force);

8. 180 degree turntable with small turning radius (180 degree in place turning);

9. Equipped with 3 code hooks on one side (requiring reinforcement);

10. The rear axle is equipped with air brakes, brake air pipes, and quick couplings. The air source is provided by a tractor forklift, which can achieve synchronous braking with the tractor;

11. Color: Grey, painted with yellow diagonal stripe paint around the car;

12. Delivery connectors and plugs.

25 ton heavy-duty traction flat trailer Foshan Nangong Vehicle has been customized for a long time, ranging from 0.5 tons to 120 tons. It has a heavy load capacity, low cost, and a designed frame service life of 20 years.

Application: Tractor trailer is suitable for the turnover and transportation of large and heavy goods in factories, ports, docks, warehouses, and other areas. The vehicle has no power and relies on a tractor or forklift to tow and walk. Solid tires are maintenance free.
