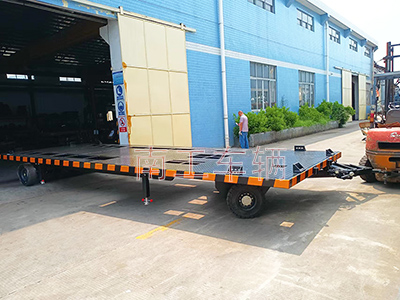

13.5 ton box to flat trailer chassis

Brand: Nangong, model: JT0647, load capacity: 13.5 tons, table size: 7.7 * 2.7 meters, tire model: 650-10, color: black; Net weight: 3.3 tons;

13.5 ton box to flat trailer chassis detailed parameters:

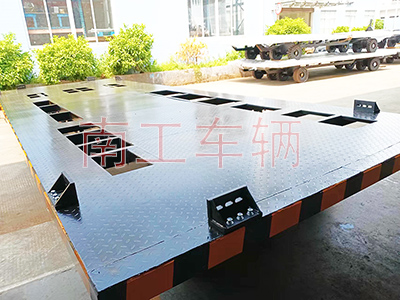

1. The carrying capacity of the flat trailer is 13.5 tons, with a table size of 7.7 meters in length, 2.7 meters in width, and approximately 0.76 meters in height. The main and side beams of the platform are made of 10 gauge steel, and the surface is paved with 4mm patterned plates;

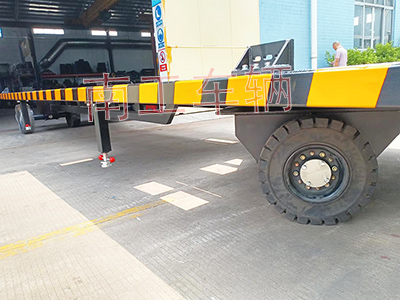

2. The tires are 8 650-10 solid tires, with a single wheel bearing capacity of 2.6 tons;

3. Rigid suspension with spring shock absorption, front wheels with brakes, equipped with handbrake;

4. The steering mechanism is a rotary table type machine rotating assembly of 15 tons;

5. The buffered traction frame effectively alleviates the impact force between the towing vehicle and the flat car during starting or braking, effectively avoiding component damage and collision and damage of goods carried. The front wheels have a left and right rotation angle of 180 degrees, and a large rotation angle facilitates small radius turning, making operation simple and convenient;

6. The design concept of this car is suspended, which can adjust the level of the vehicle body and balance the tire load force according to the smoothness of the road surface. A limit plate is installed to prevent cable damage when the suspension frame rotates 90 degrees;

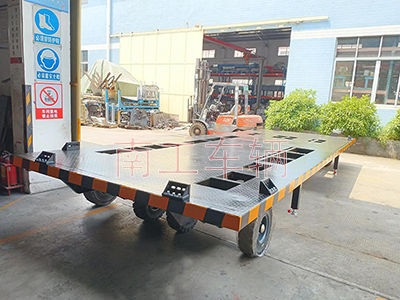

7. Eight installation plates of this vehicle are shipped with the vehicle, and the flat car is assembled with holes according to size;

8. Color: black;

The chassis of the 13.5 ton box transformer flat trailer is a long-term non-standard customization of Nangong vehicles. The box transformer flat trailer itself has no power and can be towed by forklifts or tractors. It is suitable for the turnover and transportation of bulk goods in factories, docks, ports, warehouses, and other areas. This trailer is used for box type substations and outdoor mobility.

Application: Used for short distance turnover transportation of electric box transformers, simple RVs, mobile camping trailers, mobile stores, mobile sentries, mobile toilets, container bodies, etc
