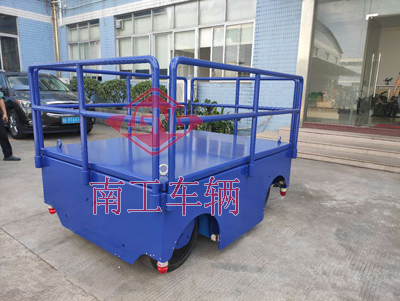

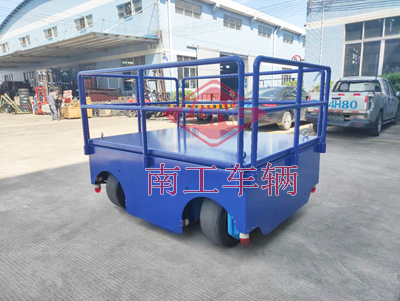

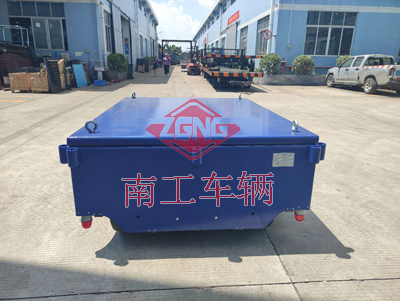

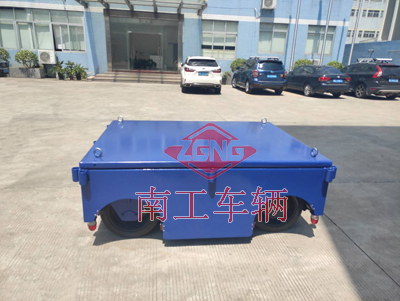

Brand: Nangong, model: NGDFT10-20/15, load capacity: 10 tons, table size: 2 * 1.5 meters, tire model: 21 * 9-15, color: BYD Bright Blue, net weight: 2.8 tons;

Detailed parameters of 10t electric Flatbed trolley:

1. Structure: Designed with a load-bearing capacity of 10 tons, a width of 1.5 meters, a length of 2 meters, and a height of approximately 0.73 meters. The table top is equipped with plug-in guardrails, which are flexible and easy to disassemble. The guardrail is welded with 40 * 3 seamless pipes (with a height of 0.7 meters);

2. Safety configuration: The four corners are designed with sound and light alarm devices and infrared detection sensors. When encountering obstacles one meter in the direction of travel, the vehicle automatically starts the braking function. When the obstacles leave the monitoring range, the remote control can be restarted to resume normal operation;

3. Chassis configuration: The tires are 4 solid 21 * 9-15 tires, with a single wheel bearing capacity of 3.1T. The driving wheels are equipped with two sets of hydraulic motors and planetary reducers, with a speed of 1-5KM/H;

4. Operation configuration: This car is operated by electric remote control, with button remote control controller. The functions include emergency start and stop, switch between walking and pump discharge, forward and backward, left and right turns, and the remote control distance is 50 meters;

5. The power adopts a 72V 8.5KW DC motor, and the power battery pack adopts a 72V 200A lithium battery and a 30A special charger;

6. Appearance configuration: Power box, electric control box, and hydraulic oil tank are designed on both sides, and the surface color of the entire vehicle is painted with BYD Bright Blue;

10 ton electric Flatbed trolley with universal wheel mobile tool trailer is manufactured by Nangong. This trailer is a non-standard customized type, which can be produced according to customer requirements. It has large load capacity, remote control operation, safety and reliability, and affordable price!

Application: This electric vehicle is used for turnover within the factory area, with strong power, precise control, smooth operation, superior performance, and convenient maintenance.
