工業平板拖車概述

    平板拖車是現代物流運輸中簡單有效的重要工具之一。僅需叉車或牽引車作牽引運動，不耗燃料，具有承重能力強、運輸效率高等優勢，適用于工廠、碼頭、港口、倉庫等場區內大宗貨物周轉運輸。
    As the most efficient carrier in modern logistics’ transportation, industrial full trailer is generally an unpowered vehicle towed by a powered machine. It is commonly used for the transport of heavy duty goods and materials in plant, warehouse, port, oil or mine field etc..

標準型工業平板拖車

    標準型工業平板拖車是按照我公司所制定的配置標準生產的工業平板拖車，本身不附帶其他功能結構。按其承載重量主要分為輕型、中型以及重型三類。

   Nangong Standard Industrial Flatbed Full Trailer has divided into light duty, medium duty and heavy duty according to its loading capacity, but not attached any special configurations.

產品特點Product Features

1.使用國標高錳合金鋼，車身加強筋密集，承載能力強，車架20年設計壽命；
2.采用知名品牌輪胎，彈性高，耐磨，質量更有保障；
3.轉盤式回轉機構，性能穩定，180度回轉架，轉彎半徑轉彎（原地轉彎）；
4.高度可調緩沖式牽引機構，不同噸位的牽引頭只需要簡單調節即可連接；牽引架彈簧復位設計，有效減緩牽引架對車架的應力損傷，延長車身使用壽命；
5.懸浮式車架，與傳統硬連接相比，減少車體長期應力損傷，使用壽命更長；
6.輪軸自動擺動調節式，凸凹地面保證板面水平且輪胎受力均衡；
1. Material of Chassis, 20 years’ designed service life, adopting the combination of GB high manganese alloy steel and highly dense reinforcing ribs to ensure large bearing capacity.
2. High quality tires collecting from famous supplier, promise a great performance with the advantage of higher elasticity, stronger wear-resistance and less maintain requirement.
3. Reliable turntable type steering system assembles 180°whirling stands, allowing small radius rotation.
4.Height adjustable buffering dragger helps to manual link different tractor conveniently. Meanwhile, patented designed of return spring effectively help to lessen the mechanical stress on the draw bar, extended the whole trailer’s service life.
5. New suspended bracket is another part for lessening mechanical stress on the whole trailer. Compared with traditional rigid joint, new version service longer period.
6. Automatic swing axle is adjustable and able to ensure cargo boarding in horizon and tires suffering same pressure on rough road.

標準配置Standard configuration

轉盤式回轉結構Turntable type steering system
實心/空心輪胎 Solid / Hollow tire
緩沖式牽引架Buffering dragger
懸浮式車架Suspended bracket
錳合金鋼車架High manganese alloy steel frame
連接器及插銷Coupler and pin
輪軸自動擺動調節Adjustable automatic swing axle
防滑花紋板表面 NanGong axle
自制標準車橋Checkered plate Covered platform

平板拖車型號

重型工業平板拖車[40噸以上] Heavy Duty Industrial Flatbed Full Trailer

重型工業平板拖車適用于造紙、涂料、冶金、模具、機械等行業重型產品的移庫、下線、中轉等短途運輸使用。
Heavy duty type, in the industrial line of papermaking , painting, metallurgy, moulding and machinery, usually applies to heavy product or facility’s short-distance transport, like shifting site, off line and transit shipment etc.

重型工業平板拖車參數

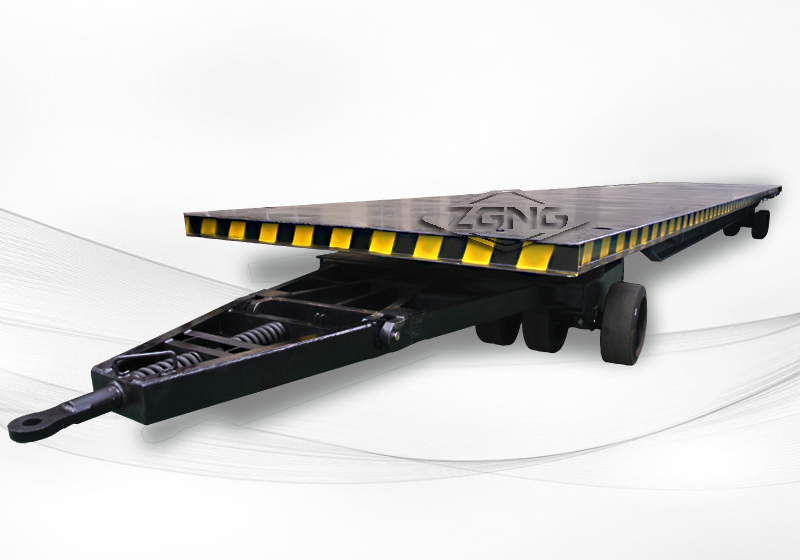

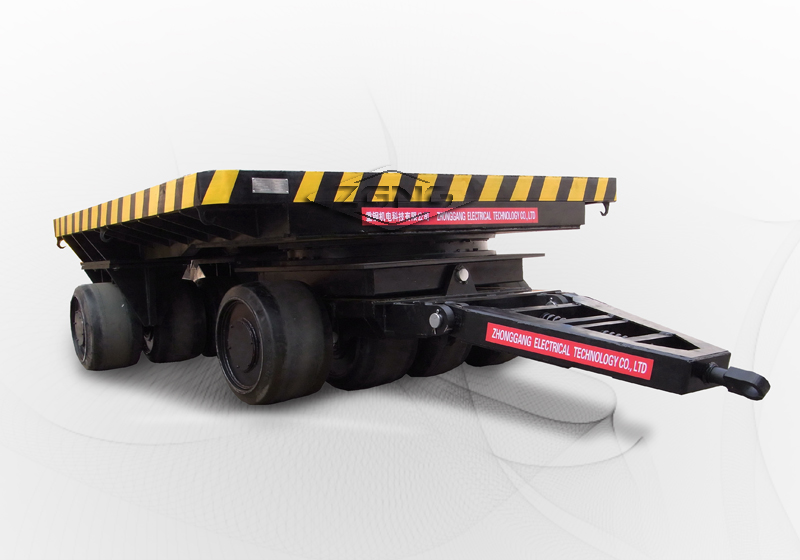

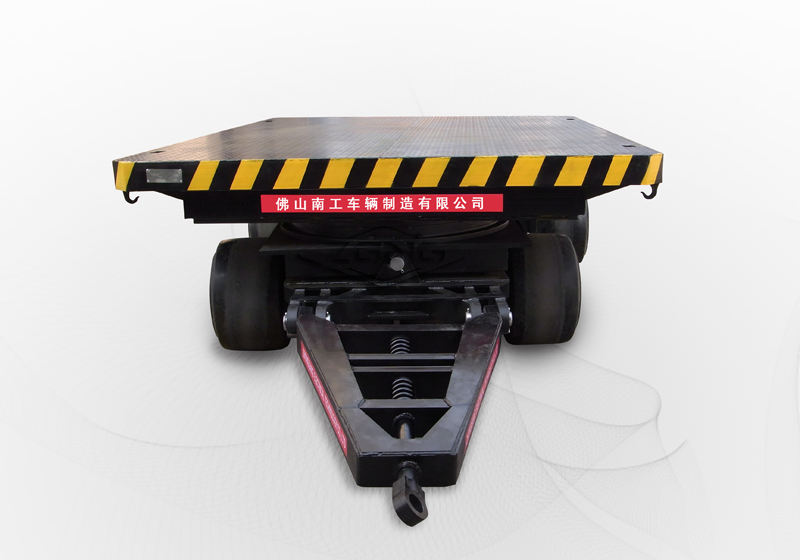

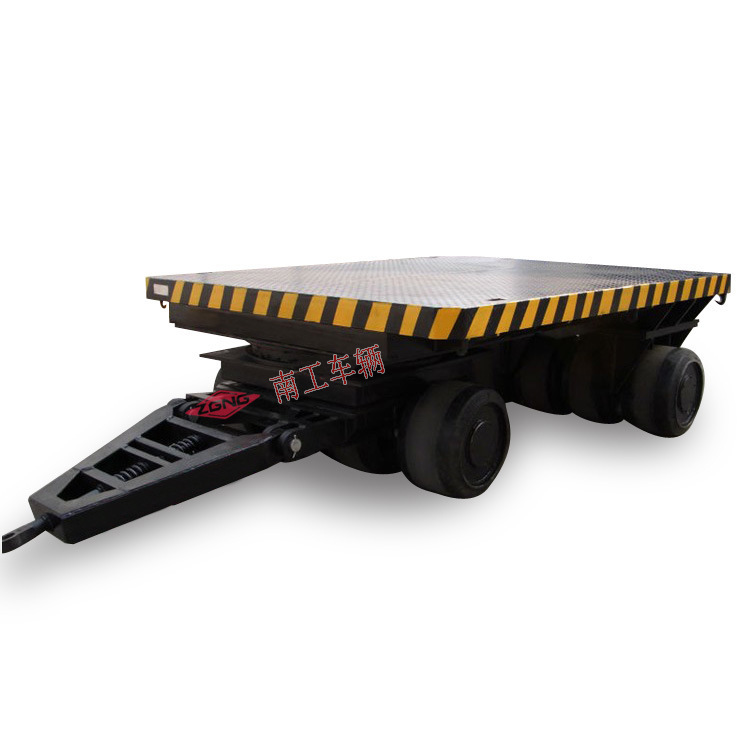

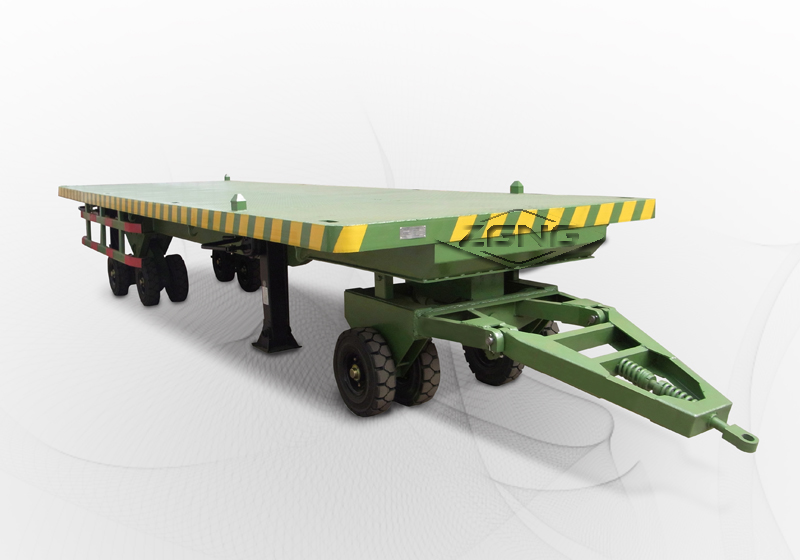

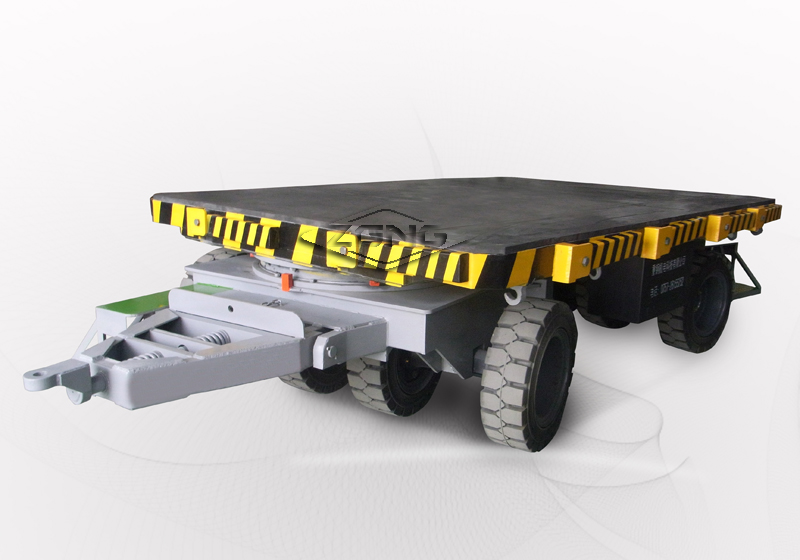

 重型平板拖車實物圖

重型工業平板拖車承重能力高達100T，適用于造紙、涂料、冶金、模具、機械等行業重型產品的移庫、下線、中轉等短途運輸使用

應用場合:適用于造紙、涂料、冶金、模具、機械等行業重型產品的移庫、下線、中轉等短途運輸使用。
