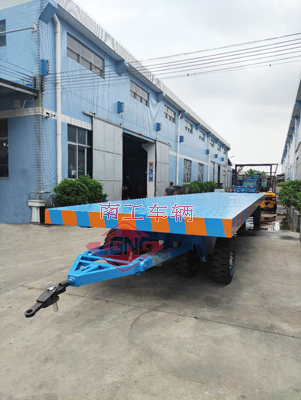

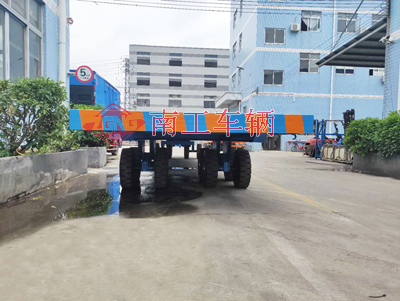

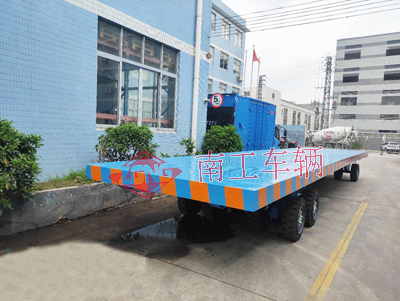

Brand: Nangong, model: NGPT30-25/120-10S, board size: 12 * 2.5 meters, load capacity: 30 tons, net weight: 7 tons, color: Dongfeng Blue;

Detailed parameters of a 30 ton 12 meter long heavy-duty fully trailer:

1. The rated load is 30 tons, the size of the cargo platform is 2.5 * 12 meters, and the platform height is approximately 0.96 meters;

2. The number of tires is 12, and the model is 28 * 9-15 solid tires, with a single load of up to 4 tons;

3. The main beam is welded with 30 # steel composite beam, and the side beam is welded with 20 # steel, effectively ensuring bearing stability;

4. Weld 4mm patterned anti slip plates on the surface of the vehicle body;

5. The rotating mechanism is a standard 30 ton machine model that can rotate 180 degrees. The rear wheels can swing and adjust themselves, and the body balance can be adjusted on uneven ground;

6. Equipped with a 30 ton spring buffered traction frame, the traction mechanism can be adjusted and fixed up and down, and different vehicle models only need simple adjustment for traction;

7. Rigid connection frame, with a small turning radius (180 degrees in place turning);

8. Color: Dongfeng Blue, with yellow warning diagonal stripe paint sprayed on the edges;

9. The driving speed is 15km/h.

The 30 ton 12 meter long heavy-duty fully trailer is produced in large quantities by Nangong Vehicles over the years, non-standard and customized according to customer requirements. Nangong trailer has the characteristics of large load capacity, short production cycle, safety and durability, and long service life.

Application occasions: heavy full trailer is used for the transit transportation of heavy products such as metallurgy, mold, machinery, etc. The trailer adopts press fit Airless tire, which has the characteristics of heavy load, safety, durability, maintenance free, etc.
