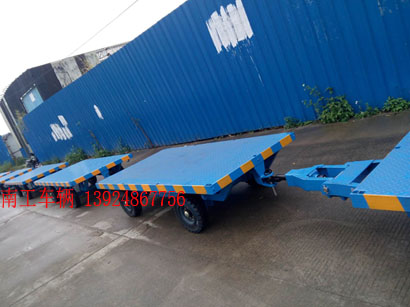

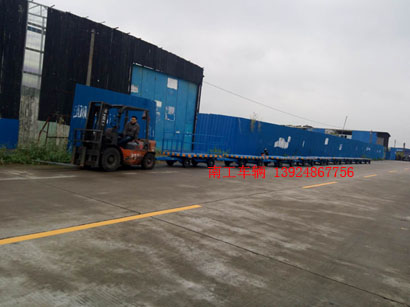

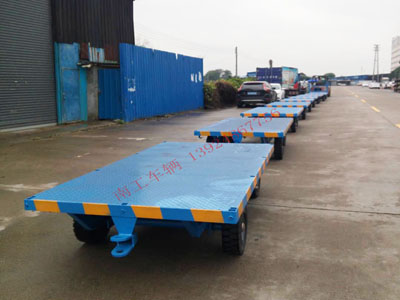

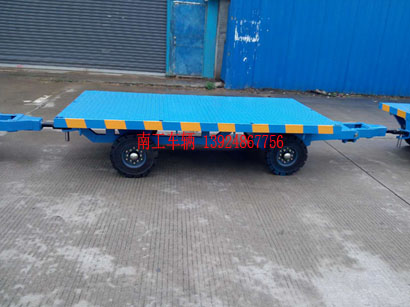

3 ton high plug-in guardrail flat trailer group

Brand: Nangong, model: NGTT03F-12/26-4S, load capacity: 3T, board size: 2.6 * 1.25 meters, color: Dongfeng Blue, net weight: 800KG.

Detailed parameters of guardrail type 3 ton flat trailer group:

1. The carrying capacity of this vehicle is 3 tons, with a cargo area of 2.6 meters in length, 1.25 meters in width, and approximately 0.6 meters in height. The main structure is made of No. 8 steel, and the main beam is a welded composite beam with a 4mm patterned plate on the surface. The front and rear of the vehicle are equipped with 600MM high plug-in guardrails, and the left and right sides are equipped with 900MM high plug-in guardrails;

2. The tires are four 500-8 solid tires, with a single wheel bearing capacity of 1.2 tons, using a two axle type, and a speed of 15km/h;

3. The turntable is a 3-ton standard 180 degree rotation, equipped with a 3-ton standard traction frame that can be adjusted and fixed up and down. Different vehicles can be easily adjusted for traction, and a connection device is installed at the rear of the vehicle to enable continuous traction;

4. Steel connected frame, with a minimum turning radius of 180 degrees and turning in place;

5. Color: Isuzu Blue, surrounded by yellow warning stripes;

6. Each unit is equipped with one dedicated connector and one plug.

The 3-ton flatbed trailer group is professionally customized by Nangong Vehicles, with high production efficiency and safe, sturdy, and durable trailers, far from home and abroad!

Application: Suitable for short distance weekly transfer loading and unloading tools in workshops, warehouses, airports, docks, stations, construction sites, etc.
