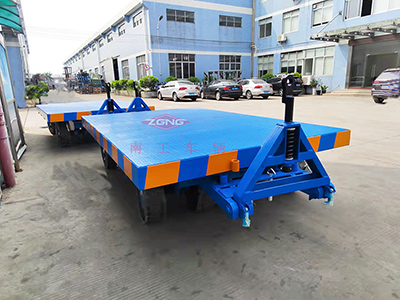

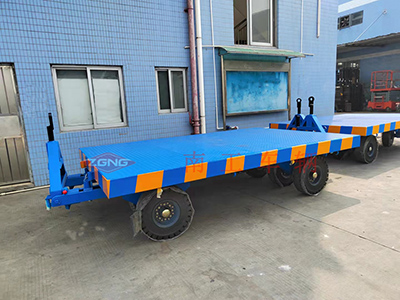

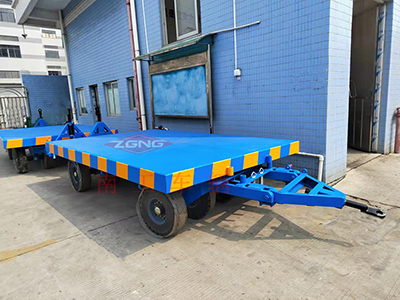

Brand: Nangong, model: NGTT15D-22/34-8S, load capacity: 15 tons, size: 4 * 2.2 meters, net weight: 2.8 tons, color: blue;

Technical configuration of a 15T heavy-duty flat trailer with dual traction full trailer:

1. The carrying capacity of the flatbed truck is 15 tons. The main beam of the platform is made of 20 # section steel, and the auxiliary beam is made of 16 # section steel. The plate surface is made of 4mm patterned plate, with a width of 2.2 meters, a length of 3.45 meters, and a height of approximately 0.82 meters.

2. This car has 8 solid tires of models 650-10, with a single wheel load of 2.6T and a rigid suspension. The speed is within 15km/h.

3. The design concept of this car is that it can be suspended and adjusted according to the smoothness of the road surface, making it easy for small radius steering and transportation to adjust the body level and balance the tire load force.

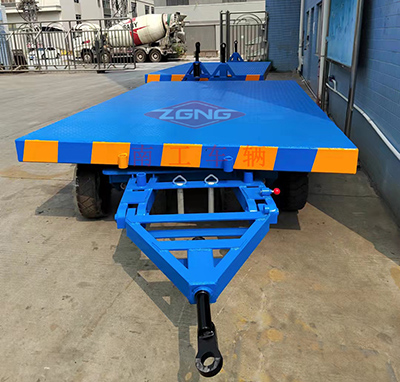

4. The dual traction structure allows the front and rear wheels to be pulled with a left and right rotation angle of 180 degrees, completely solving the problem of turning around in narrow channels. When used, the traction frame at the connecting end of the tractor needs to be removed from the rotation limit, while the rotation frame at the rear of the parking space needs to be fixed with a limit.

5. The steering mechanism is a rotary table type machine rotating assembly (15T), which has stable performance and long service life, and is easy to pull.

6. Each side of the vehicle body is equipped with 4 bundled couplers, and a set of connectors and pins is delivered.

7. Color: According to customer requirements.

Dual traction flatbed trailer is a non-standard customized vehicle for Nangong, with dual turntables and very flexible steering. It has a small turning radius and can be towed in both directions. It has a large carrying capacity and a small weight. It is a tool trailer commonly chosen for narrow factory areas and small locations.

Application: The 15T heavy-duty flat trailer with dual traction is suitable for use in industries such as ceramics, hardware and machinery, plastic and plastic, chemical equipment, building materials and steel.
